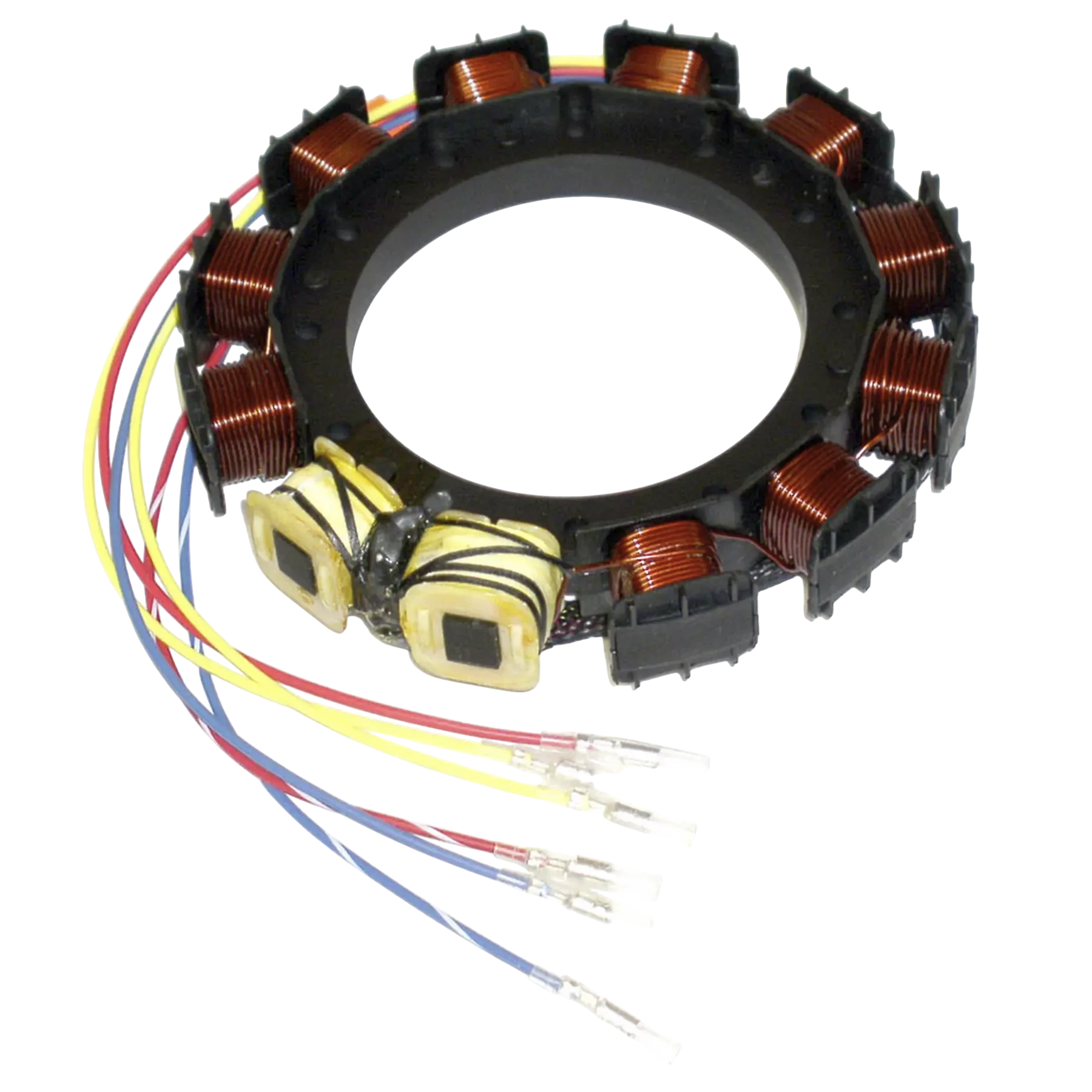

This replacement stator is designed for stable output and long service life in harsh outboard environments where heat, moisture, and vibration are constant concerns. This style of stator is also associated with a 16-amp charging configuration, so clean electrical output and connector integrity are especially important. The design priorities are especially important on Force applications where ignition stability depends on clean stator output.

Design & Materials

• Heavy-duty winding insulation helps prevent shorting between coil layers during extended operation.
• High-temperature insulation helps protect the windings from heat cycling inside the engine cowling.
• Marine-grade lead wires and molded connectors help maintain dependable contact in a high-vibration environment.
• Precision-wound copper coils are used to promote efficient voltage generation and stable output.

Key Functional Details

• Helps restore ignition charge voltage for strong, repeatable spark output.
• Designed to maintain stable voltage as engine load and RPM change.
• Helps the ignition system recover from weak output, hard starting, and cylinder drop-out symptoms.
• Helps correct intermittent spark loss caused by heat-sensitive stator windings.

Failure Symptoms to Check

• Unstable ignition output
• Weak or intermittent spark
• Spark loss after warm-up
• Charging output problems where the stator also supports charging circuits
• Poor acceleration caused by weak ignition energy

Always compare resistance and peak-voltage readings to the correct service specifications when diagnosing a suspected stator failure.
