Testing an Outboard Switchbox (CDI Box)
The switchbox controls ignition timing and coil firing. A failed unit can cause no spark, weak spark, or loss of one or more cylinders.
Complete guide: Outboard Ignition Testing Guide
More ignition components to test: Power Pack Testing | How To Test A Stator | Coil Troubleshooting | Regulator/Rectifier Test | Trigger Timer Base Diagnostics
Switchbox Test
Testing a switchbox requires verifying stator input voltage, trigger signals, and output voltage to ignition coils. A DVA adapter is strongly recommended because standard meters cannot capture peak ignition voltage.

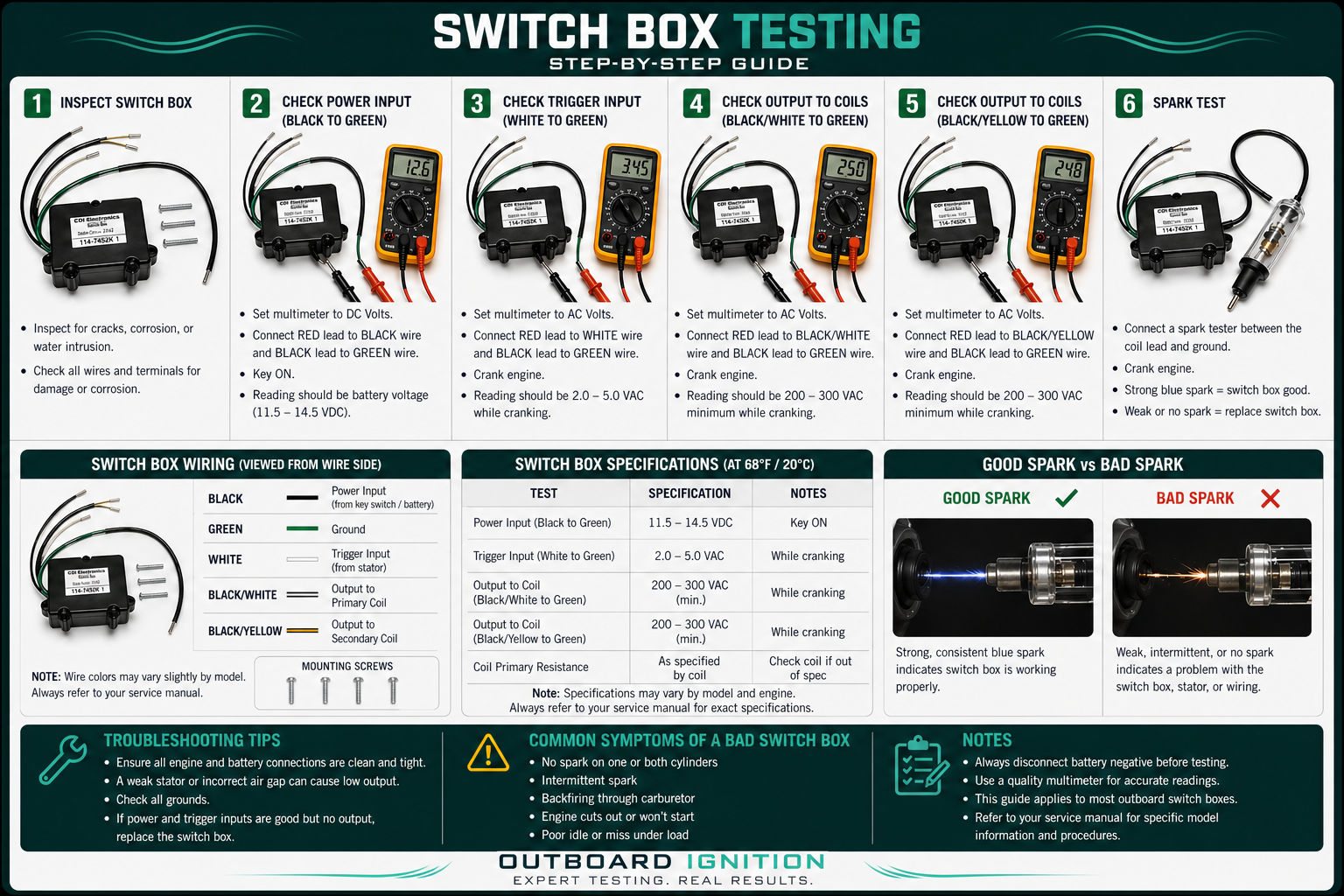

Switch Box Testing Overview
Initial Checks
- Disconnect the main harness (big red plug)
- Inspect wiring for corrosion or loose connections
- Verify proper grounding
- Check all connections are clean and tight
Kill Circuit Test
- Locate black/yellow kill wire
- Disconnect it from switchbox
- Crank engine and check spark
- If spark returns → kill circuit issue
DVA Voltage Testing
- Measure stator voltage input
- Measure trigger voltage
- Measure switchbox output to coils
- Compare readings across cylinders
Component Isolation
- Swap ignition coils to rule them out
- Check voltage to dead cylinder
- If input good but no output → bad switchbox
Resistance Testing
Some switchbox-related circuits may test around 13,000–15,000 ohms, but always follow engine-specific specs.
When to Replace the Switchbox
- Good stator and trigger readings
- Kill circuit ruled out
- Proper voltage entering switchbox
- No output to coils
