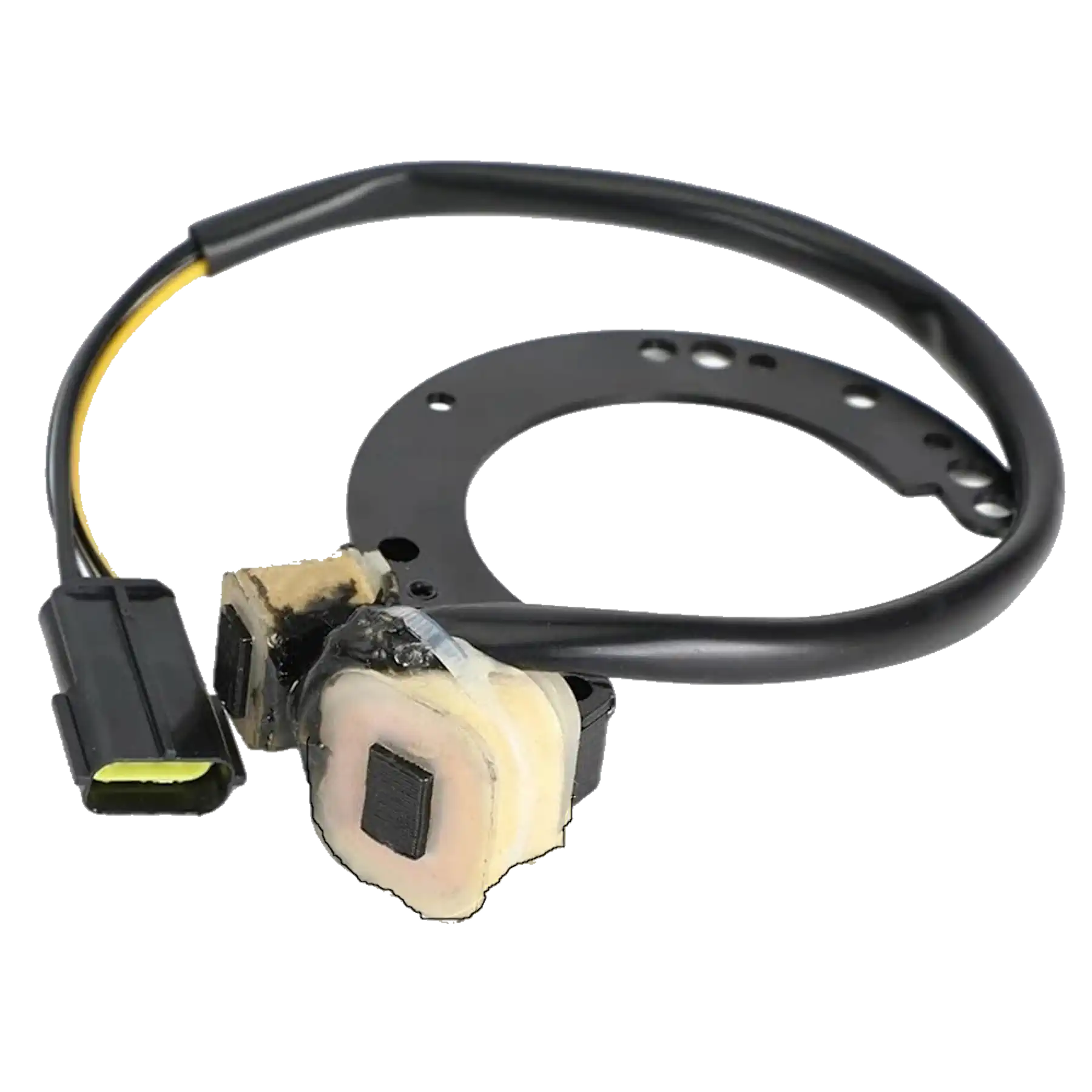

This stator assembly is built to help the ignition system maintain clean spark delivery by supplying consistent electrical output as the flywheel rotates. The design priorities are especially important on Mercury/Mariner applications where ignition stability depends on clean stator output.

Construction Details

• Sealed construction helps reduce moisture intrusion that can lead to weak spark or no-spark conditions.
• Vibration-resistant construction helps reduce the chance of intermittent output caused by loose or damaged windings.
• Marine-grade lead wires and molded connectors help maintain dependable contact in a high-vibration environment.
• Heavy-duty winding insulation helps prevent shorting between coil layers during extended operation.

Key Functional Details

• Supports dependable starting by delivering the voltage needed by the ignition module.
• Helps reduce high-RPM breakup caused by weak or unstable stator output.
• Supports smooth acceleration by helping the ignition system maintain consistent energy.
• Helps the ignition system recover from weak output, hard starting, and cylinder drop-out symptoms.

Common Symptoms of Stator Failure

• Poor acceleration caused by weak ignition energy
• High-rpm breakup
• Charging output problems where the stator also supports charging circuits
• Unstable ignition output
• Random cylinder drop-out

For best results, stator output should be verified with the proper service-manual resistance and DVA voltage tests before installation.
