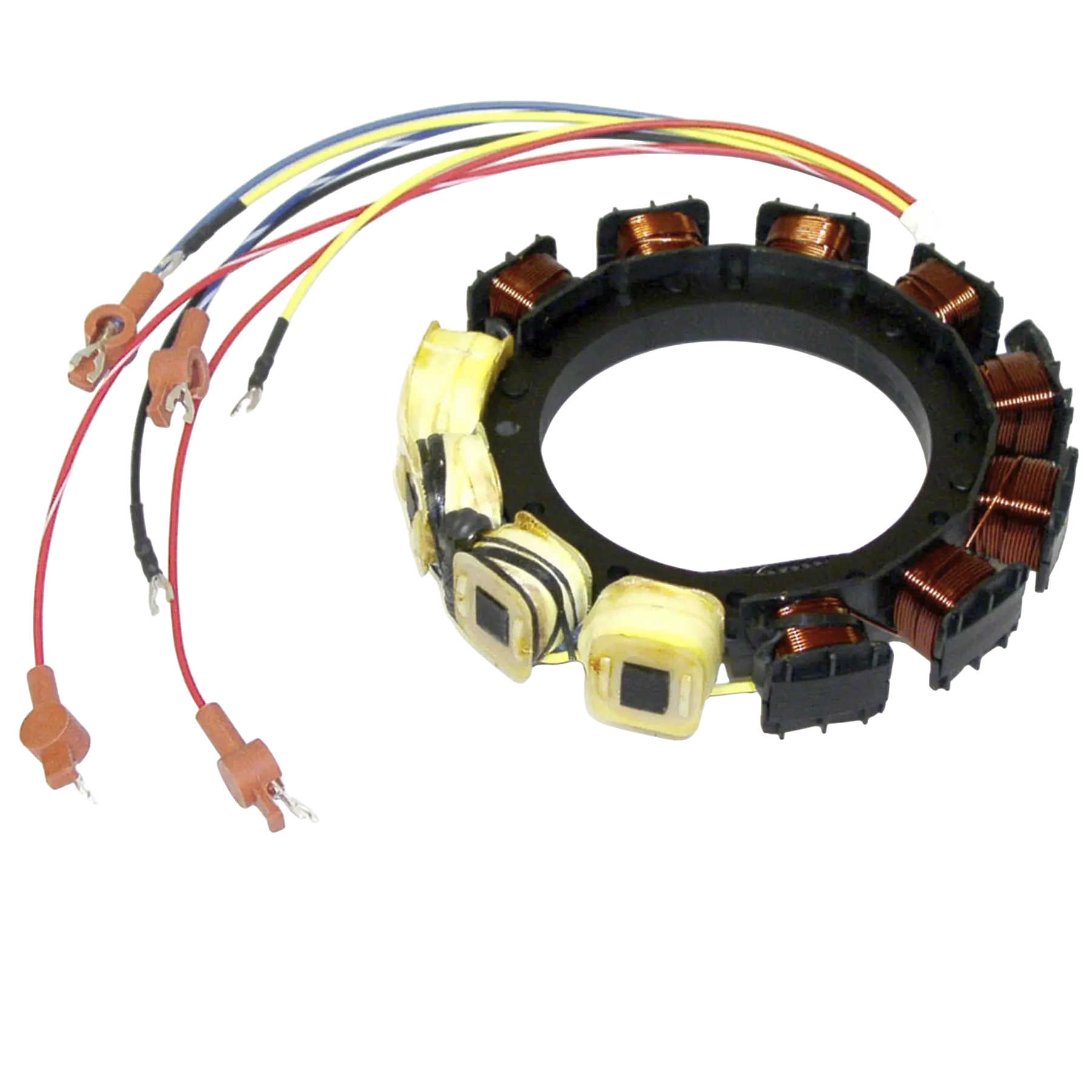

This marine stator assembly is engineered to generate the electrical energy needed for dependable CDI ignition performance across changing engine speeds. The design priorities are especially important on Mercury/Mariner applications where ignition stability depends on clean stator output.

Design & Materials

• The coil assembly is built to resist breakdown from heat, oil mist, humidity, and repeated thermal expansion.
• Precision-wound copper coils are used to promote efficient voltage generation and stable output.
• Heavy-duty winding insulation helps prevent shorting between coil layers during extended operation.
• The stator body is designed to maintain proper coil alignment under continuous flywheel rotation.

Performance Features

• Supports dependable starting by delivering the voltage needed by the ignition module.
• Helps the ignition system recover from weak output, hard starting, and cylinder drop-out symptoms.
• Designed to maintain stable voltage as engine load and RPM change.
• Designed for use in wet, hot, and vibration-heavy marine engine compartments.

Failure Symptoms to Check

• Poor acceleration caused by weak ignition energy
• High-rpm breakup
• Weak or intermittent spark
• Charging output problems where the stator also supports charging circuits
• Engine misfire under load

For best results, stator output should be verified with the proper service-manual resistance and DVA voltage tests before installation.
