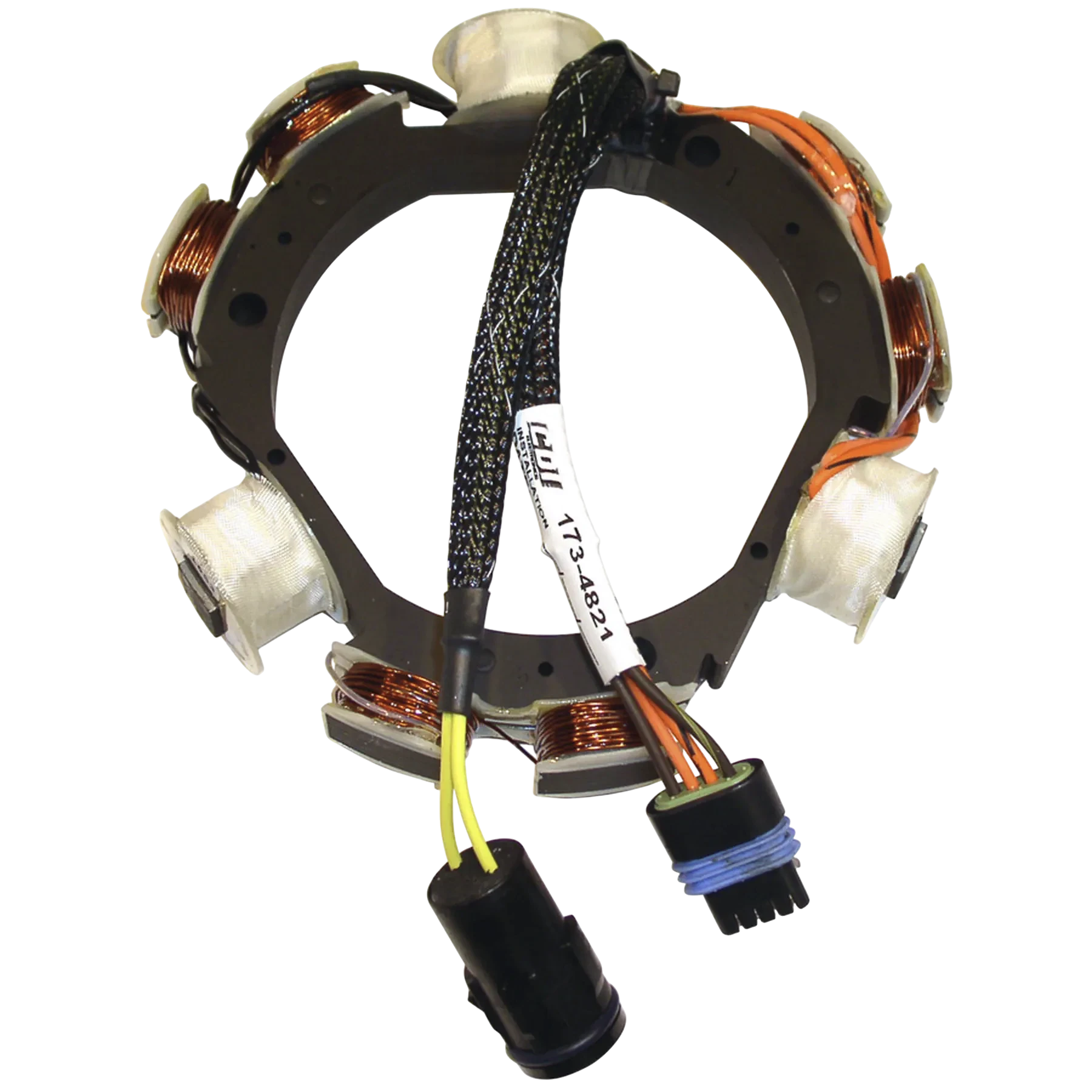

A properly functioning stator is critical to reliable spark production, and this assembly is built to deliver steady voltage under demanding marine operating conditions. The design priorities are especially important on Johnson/Evinrude applications where ignition stability depends on clean stator output.

Design & Materials

• Heavy-duty winding insulation helps prevent shorting between coil layers during extended operation.
• Precision-wound copper coils are used to promote efficient voltage generation and stable output.
• Vibration-resistant construction helps reduce the chance of intermittent output caused by loose or damaged windings.
• Sealed construction helps reduce moisture intrusion that can lead to weak spark or no-spark conditions.

Performance Features

• Supports dependable starting by delivering the voltage needed by the ignition module.
• Engineered to meet OEM-style electrical output characteristics.
• Designed to maintain stable voltage as engine load and RPM change.
• Helps correct intermittent spark loss caused by heat-sensitive stator windings.

Common Symptoms of Stator Failure

• Unstable ignition output
• Spark loss after warm-up
• No-start conditions
• Engine misfire under load
• Hard starting

For best results, stator output should be verified with the proper service-manual resistance and DVA voltage tests before installation.
