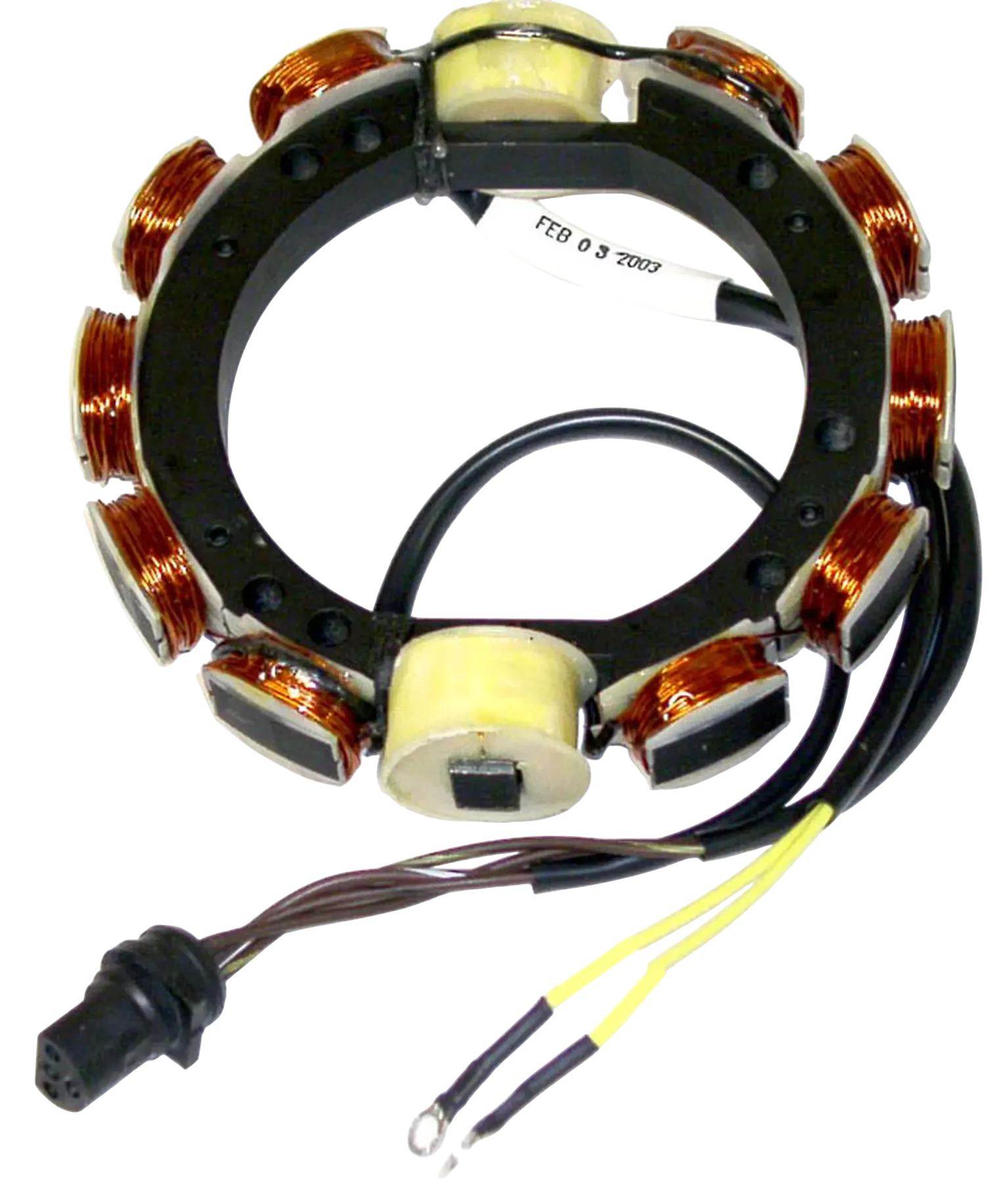

The stator acts as the electrical foundation of the ignition system, producing the current needed to feed the ignition module and support consistent firing. This style of stator is also associated with a 9-amp charging configuration, so clean electrical output and connector integrity are especially important. The design priorities are especially important on Johnson/Evinrude applications where ignition stability depends on clean stator output.

Stator Design

• Marine-grade lead wires and molded connectors help maintain dependable contact in a high-vibration environment.
• Vibration-resistant construction helps reduce the chance of intermittent output caused by loose or damaged windings.
• Laminated core sections help concentrate magnetic flux from the flywheel magnets for reliable electrical production.
• The stator body is designed to maintain proper coil alignment under continuous flywheel rotation.

Ignition System Benefits

• Designed for use in wet, hot, and vibration-heavy marine engine compartments.
• Engineered to meet OEM-style electrical output characteristics.
• Supports smooth acceleration by helping the ignition system maintain consistent energy.
• Helps restore ignition charge voltage for strong, repeatable spark output.

Common Ignition Symptoms

• Weak or intermittent spark
• Engine misfire under load
• Hard starting
• Unstable ignition output
• High-rpm breakup

Always compare resistance and peak-voltage readings to the correct service specifications when diagnosing a suspected stator failure.
